1/2in ISC Compact Block Green



  • Sale
  • Regular price $142.29

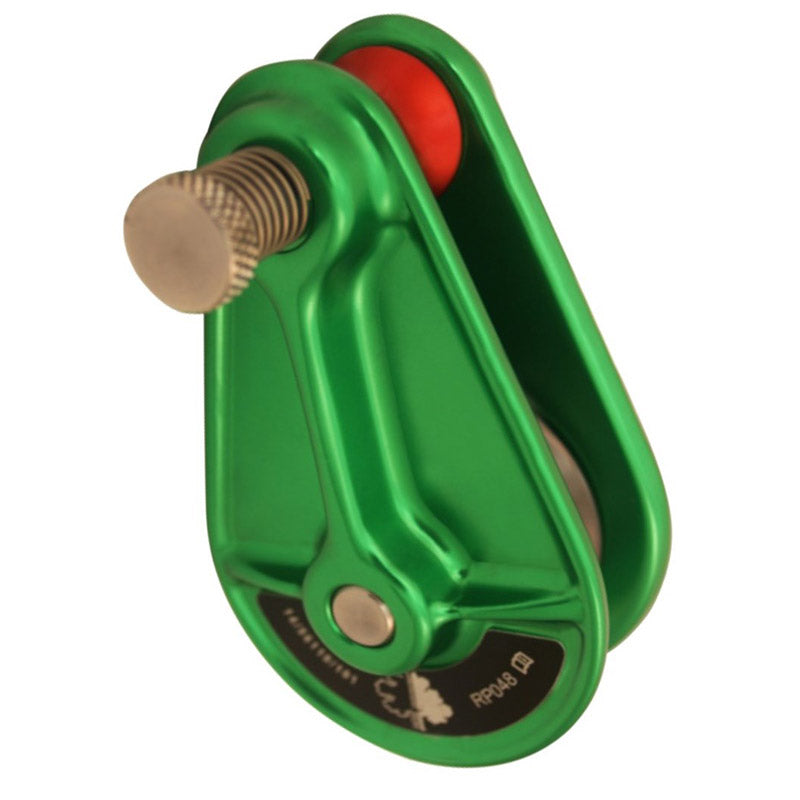

At approximately half the size of the standard small rigging pulley and weighing in at only 490g (1lb), the new Compact Rigging Pulley offers a highly impressive strength to weight ratio with an 85kN (19000lbf) MBS and a WLL of 17kN (3800lbf).

The Pulley plates are made from hot forged Aluminum and it is this manufacturing process which allows such a compact pulley to boast such great strength and dynamic load bearing capacity.

Working Line (Grey Sheave):
13mm (1/2") - 38kN (8500lbf)

Topping Strop (Red Sheave):
16mm (5/8") - 74kN (16650lbf)

The Compact Rigging Pulley is fitted with a spring-lock closure mechanism.



  • (MBS) Minimum Breaking Strength (kN)    85
  • (MBS) Minimum Breaking Strength (lbf)    19000
  • Pulley wheel color    Grey
  • Anchor wheel color    Red
  • Wheel material    Aluminum
  • Body finish    Anodized
  • Color    Green/grey
  • Weight (grams)    490
  • Weight (ounces)    16
  • Height (mm)    125
  • Height (inches)    5
  • Width (mm)    76
  • Width (inches)    3
